BOREHOLE CAMERA SYSTEMS

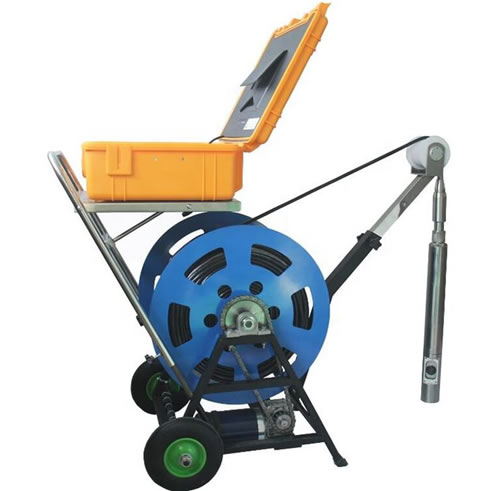

HD DUAL VIEW BOREHOLE VIDEO INSPECTION CAMERA

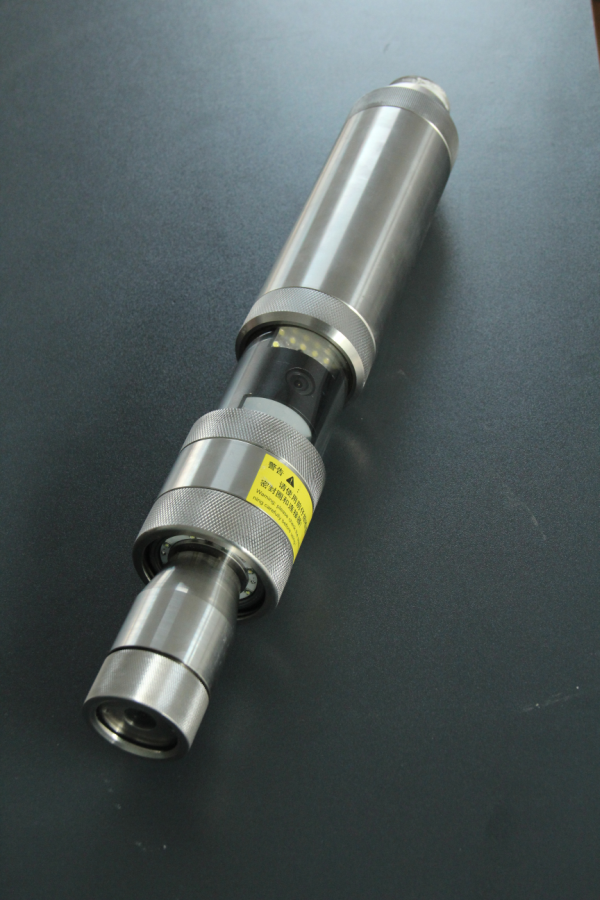

- Equipped with 2 cameras, one on the bottom, the other on the side rotate 360 degree cycle
- Outer dimensions: 62x610mm
- Image Sensor: 1/4″ high-definition 700TVL
- Sapphire lens to protect the glass,camera stainless steel
- 12PCS LED lights around the bottom lens and 10PCS around side lens
- IP rate: 0-500m
- Total Gross weight about 4 kg

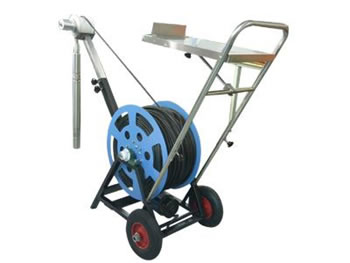

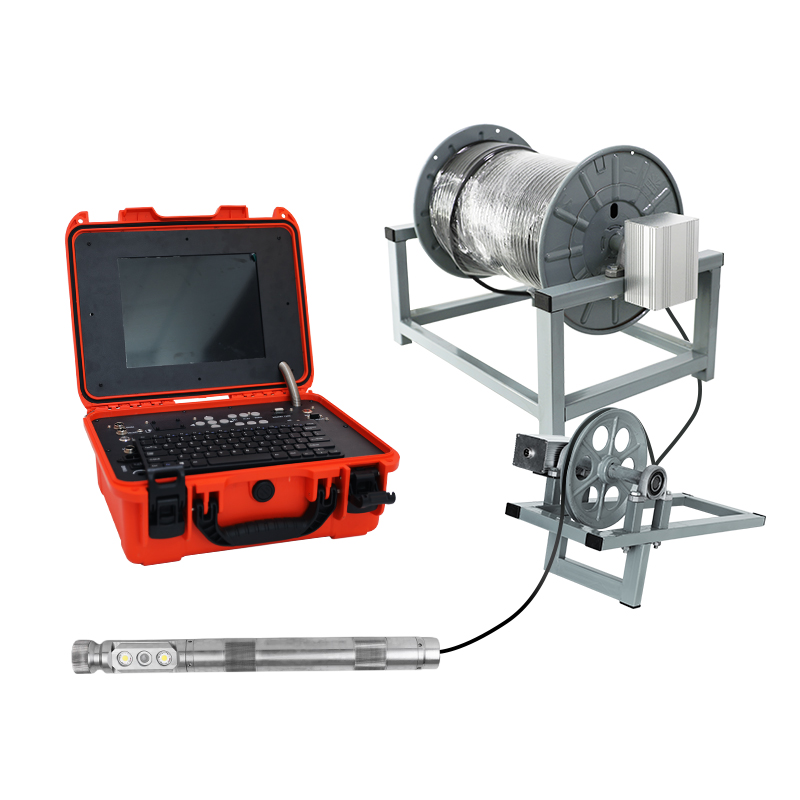

- Portable electric winch
- Power supply: DC24V or AC110V/AC240V
- Can provide 200 meters/300meters/500 meters
- Winding speed:0~20m/min
- Cable speed adjustable
- Φ10.5mm twist wires cable (150m-500m option)
- On screen depth encoder Electrical and handle cable rolling

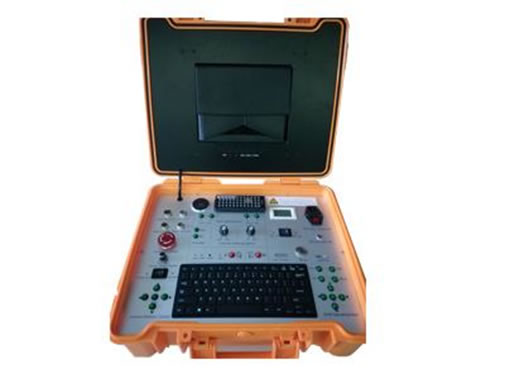

- 10″ LCD screen
- 2 Chanel video input interface (downside and rotating camera)
- High-definition DVR system with 128G hard disk drive and keyboard.
- Output: Audio and Video Wire lift Speed can be adjusted
- Built in WIFI transmitter
- Using intelligent terminals as display and recording device
- Transmitter distance 30m
- Through WIFI wireless transmit video to Android, Apply OS or MID terminal
- Non-interference for 2.4G wireless remote control
HD DUAL CAMERA ROTATING PROBE / BOREHOLE / WELL CAMERA V10SS
V10SS is a complete inspection system for water well, borehole, down hole inspection. It includes 1pcs 45mm Pan Tilt rotation camera head, 1pcs 8inch AHD DVR control unit and 1pcs flexible cable reel. The power supply is DC 12V. The control box also has a built-in 10500mA battery.
GYGD-III BOREHOLE CAMERA & WATER WELL INSPECTION CAMERA
100m to1500m Borehole Video Inspection Camera
- Super high resolution colour picture
- Low light operation
- Led underwater light
- Stainless steel housing
- Military grade water tightness cable
- Ability to inspect deep and stand high water pressure
| No. | Description | Parameter | ||
|---|---|---|---|---|
|
1 |
Imaging chip
|
1/3”color CCD |
||
|
2 |
Resolution
|
850TVL
|
|
|
|
3 |
Focusing
|
Automatic |
Can also be manual
|
|
|
4 |
Lighting
|
High power lighting LED
|
|
|
|
5 |
Measuring depth
|
0-2000m
|
||
|
6 |
Colour rotating lens
|
12,000,000 pixel sensitivity 1.5 Lux
|
|
|
|
7 |
Viewing Angle
|
360° Hole Wall
|
||
|
8 |
Scan
|
Automatic scan
|
Automatic scan
|
|
|
9 |
Control |
Dynamic change speed or footage
|
||
|
10 |
Illuminating brightness
|
Automatic |
|
|
|
11 |
Connection
|
USB port
|
Can connect with P
|
|
GYGD-II BOREHOLE CAMERA & WATER WELL INSPECTION CAMERA
100M / 300M / 500M / 1000M Borehole Inspection Camera 18pc LED Light
- Super high resolution colour picture
- Low light operation
- Led underwater light
- Stainless steel housing
- Military grade water tightness cable
- Ability to inspect deep and stand high water pressure.
| No. | Description | Parameter | |
|---|---|---|---|
|
1
|
Imaging chip
|
1/3”color CCD
|
|
|
2
|
Resolution
|
850TVL |
|
|
3
|
Focusing
|
Automatic |
Can also be manual
|
|
4
|
Lighting |
High power lighting LED
|
|
|
5
|
Measuring depth
|
0-500m
|
|
|
6
|
Colour rotating lens
|
12,000,000 pixel sensitivity 1.5 Lux
|
|
|
7
|
Viewing Angle
|
360° Hole Wall
|
|
|
8
|
Scan |
Automatic scan
|
Automatic scan
|
|
9
|
Control
|
Dynamic change speed or footage
|
|
|
10
|
Illuminating brightness
|
Adjustable |
|
