Ground Penetrating Radar

LOWEST PRICE ON THE MARKET

High performance on a low budget

Scudo Concretto Dipolo
The professional's right hand Part of your construction team Every explorer's tool

Excellence in object detection resolution and material penetrability. Easily mounted on carts, trolleys and other machines. Your partner in utilities mapping, road inspections, archaeological and geophysical research. Suitable for exotic applications such as mine detection, forensic investigations, cavity discovery.

• Central Frequency: 500MHz
• Max Depth in Rock: 9m
• Time windows: 50ns / 100ns
• Minimal object Detection Resolution: 0.01m
• Size: 38/35/15 cm
• Best at: Underground utility detection
An indispensable tool for every construction team. The perfect tool for localizing rebars and wiring. Reliable in concrete inspections for cracks, cavities, etc. A must have.

• Central Frequency: 2000MHz
• Max Depth in Concrete: 0.7m
• Time windows: 7ns / 14ns
• Minimal Object Detection Resolution: 0.001m
• Best at: Rebar mapping

Resilience at its finest, made for the big rough outdoors. Your best helper in unearthing history, measuring ice thickness, finding air pockets in bedrock, investigating underground geophysical layers. Dipolo is lightweight and easy to carry everywhere you go.

• Central Frequency: 100MHz / 300MHz / 500MHz
• Max Depth in Rock: 9m
• Time windows: 75ns / 150ns
• Minimal Object Detection Resolution: 0.3m
• Size: 75/110/(78|35|25) cm
• Best at: Archaelogical exploration

Scudo

Utility Mapping & Urban Planning

LOWEST PRICE ON THE MARKET

High performance on a low budget

There is a growing need for smarter and more sustainable city planning. GPR enables data-driven decisions for public spaces to ensure health & safety, cost effectiveness and damage control.

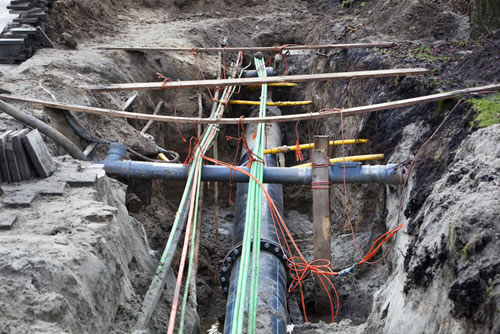

- Quickly locate all underground features - pipes, cables and pits.
- Minimize costs by pinning points of interest for drilling and digging.
- Avoid health and safety risks by highlighting gas pipes and other hazardous features before digging.
- Improve job execution times and costs by removing the trial and error periods for finding underground facilities.
- Provide teams on future projects with the necessary information for carrying out their jobs quickly, safely and cost-efficiently.

MAP THE UNDERGROUND

in High Resolution

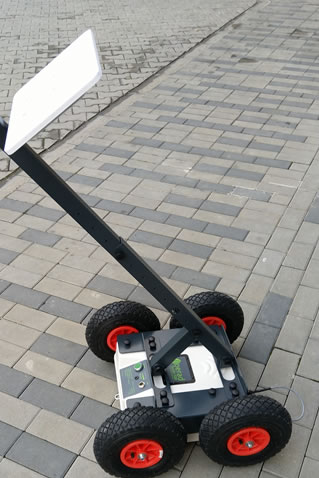

Scudo is a Ground Penetrating Radar (GPR) with high object-detection resolution, designed with the construction site in mind. It is robust, lightweight and reliable. With Scudo you can:

• Get accurate data
• Ensure health & safety of your team and your community
• Develop data-driven project plans
• Save time & resources

With Three Sets of Antennas

SCUDO

The professional's right hand

Excellence in object detection resolution and material penetrability. Easily mounted on carts, trolleys and other machines. Your partner in utilities mapping, road inspections, archaeological and geophysical research. Suitable for exotic applications such as mine detection, forensic investigations, cavity discovery.

• 500 MHz Central Frequency
• 9 mMax Depth in Rock
• 50 ns / 100 ns Time windows
• 0.01 m Minimal object Detection Resolution
• 38/35/15 cm Size
• Underground utility detection



SYSTEM PARTS & ACCESSORIES

Here's what you get with your system

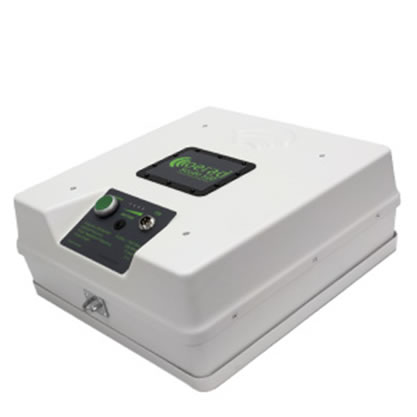

• Scudo GPR main module
• Rough terrain protector
• Distance measuring wheel
• Battery pack 10 x 1.2 V 2400 mAh NiMH
• Battery charger
• Handle
• Assembly tools
• USB OTG
• USB data cables
• Oerad data acquisition software
• Backpack
• Two-year warranty
• System documentation

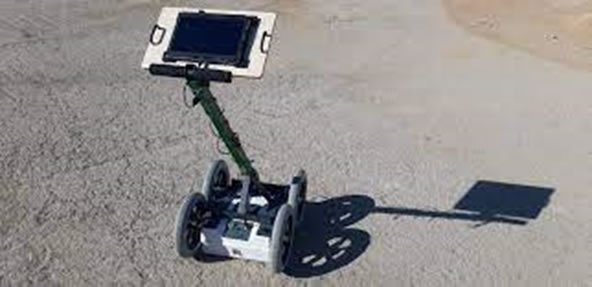

• Cart
• Android tablet
• Tablet support

TECHNICAL SPECIFICATIONS

Frequency Bandwidth 30 MHz - 900 MHz
Central Frequency 500 MHz
Operating Time Windows 50 ns / 100 ns
Dynamic Range 120 dB min
Horizontal Resolution 0.1 m
Vertical Resolution 0.05m
Pulse Repetition Frequency 75 kHz
Pulse Length 3 ns
Pulse Energy 600 V
Pulse Rise Time 1 ns
Power Consumption 270 mAh
Batteries 10/20 x 2.4 Ah NiMH 1.2 V
Autonomy with One Charge 7 h / 14 h
Charge Time 5 h / 10 h
ADC Range 8 bits
Data Acquisiton Rate 18.2 traces/second
Samples per Trace 585
GPR Interface UART over USB
Operating Temperature Range -5° C to 40° C
Water Resistance IP 52
Size 38/35/15 cm
Weight 3 kg

Concretto

Part of your construction team

An indispensable tool for every construction team. The perfect tool for localizing rebars and wiring. Reliable in concrete inspections for cracks, cavities, etc. A must have.

CONCRETE RESULTS

See in and through walls

Concretto is a lightweight, portable and sturdy Wall Penetrating Radar (WPR) - an indispensable tool for every construction worker, inspector or repairs man. Concretto will ensure you:

Excellent penetration depth in concrete and brick floors and walls
• Know where to drill without damaging the structure or your equipment
• Can quickly assess the stability of a wall, road or bridge
• Find rebars, wires, cables and pipes on the spot

Dipolo

With Three Sets of Antennas

Every explorer's tool

Resilience at its finest, made for the big rough outdoors. Your best helper in unearthing history, measuring ice thickness, finding air pockets in bedrock, investigating underground geophysical layers. Dipolo is lightweight and easy to carry everywhere you go.


• Central Frequency: 100MHz / 300MHz / 500MHz
• Max Depth in Rock: 9m
• Time windows: 75ns / 150ns
• Minimal Object Detection Resolution: 0.3m
• Size: 75/110/(78|35|25) cm
• Best at: Archaelogical exploration
