SMOKE TESTER SEWERS/DRAINS

RADIO FREQUENCY IDENTIFICATION SYSTEMS

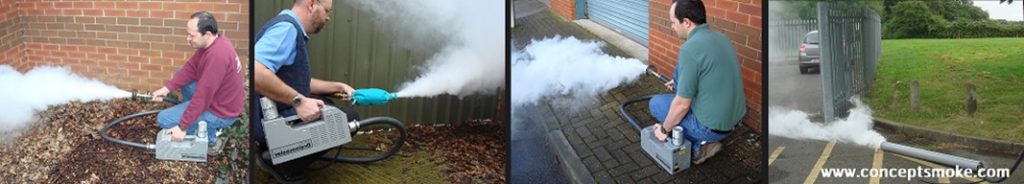

The Drain Master makes identifying leaks in drains, dramatically easier & cleaner.

Potentially identifying leaks in minutes, that without the aid of high-quality artificial smoke would take hours.

Producing a persistent water-based non-toxic smoke.

The smoke can travel through hundreds of metres of drains.

The unit runs off of the standard Colt 4 water-based Aerosols which re-seal after use, so they can be used time and time again until exhausted.

Concept can also provide accessories such as drain bags, drain bags with 1″ bore through tube, drain stoppers, pressure testing kits & smoke aerosol packs.



The Drain Master allows you to operate off power (once pre-heated).

You can produce a large volume of smoke using the retained energy within the precision

engineered heat exchanger.

This allows the user to carry the smoke generator around, making smoke as required, without a trailing electrical lead.

Once the unit has been pre-heated the Drain Master will generate high quality smoke for around 2 minutes (continuous max output).  When connected to the mains, the Drain Master will operate continuously at maximum output.



SMOKE MACHINE ACCESSORIES

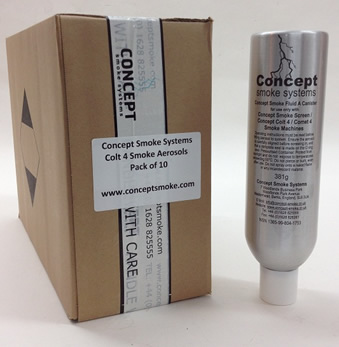

CONCEPT AEROSOLS

Box of 10 Colt 4 Aerosols. The resulting smoke from the Colt 4 smoke canister is very persistent.

The canister is a one-piece aluminium vessel,

eliminating any chances of rust occurring on the seam and prolonging the life of the aerosol.

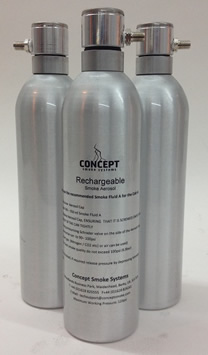

REFILLABLE SMOKE CANISTERS

Once this canister has been filled with Concept’s Smoke Fluid A

(see below), it can be pressurised via an in-built Schrader valve and pump / airline. If used with care a single canister will last 25+ operations.

Refillable canisters can reduce overseas carriage costs due to not being pressurised.

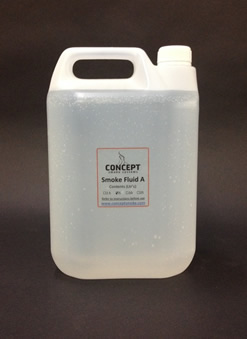

CONCEPT SMOKE FLUID

Smoke Fluid A is designed to give the most persistent smoke effect possible.  It can be used in refillable smoke canisters (as above).
One 5Ltr bottle of Smoke Fluid A will last approx. 15 operations.

HIGH PRESSURE SHOCK PUMP

The heavy duty ducting adapter is designed to carry the thicker & heavier 25mm hose used on the Drain Master.

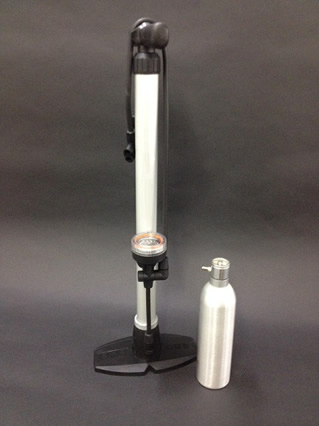

HIGH PRESSURE STIRRUP PUMP

For use with the refillable smoke aerosols.

Designed to be small, portable and robust.

To pressurise a refillable aerosol the pump requires approx.

200 actions to reach 100PSI.

HEAVY DUCTING ADAPTOR

For use with the refillable smoke aerosols. Designed to be small, portable and robust. To pressurise a refillable aerosol the pump requires approx. 5 actions to reach 100PSI.

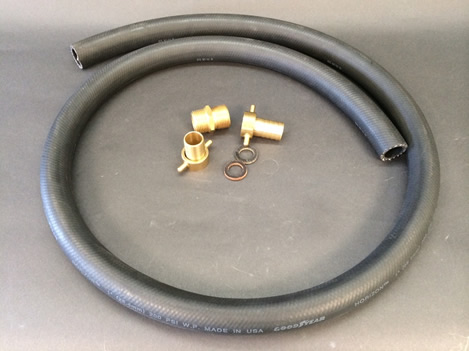

HEAVY DUTY 25MM HOSE AND BRASS COUPLINGS

For use with the refillable smoke aerosols. Designed to be small, portable and robust. To pressurise a refillable aerosol the pump requires approx. 5 actions to reach 100PSI.

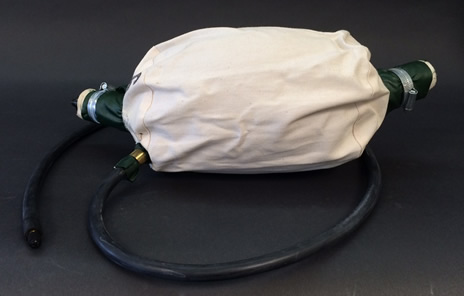

DRAIN BAGS WITH 1’ BORE THROUGH TUBE

Drain bag stoppers are available in a variety of sizes to suit different pipe diameters (4, 6 or 9 inch) and are designed to inflate and seal the pipe. The bags are canvas covered.

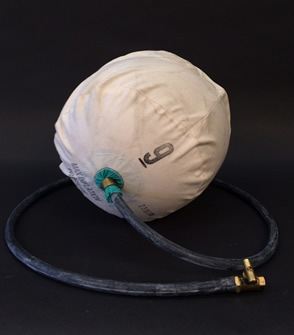

DRAIN BAG STOPPERS

Each bag has a 1″ bore through tube, allowing smoke to pass through the seal and into the pipe. Drain bags come in a variety of sizes to suit different pipe diameters (4, 6 or 9 inch). The bags are canvas covered.
